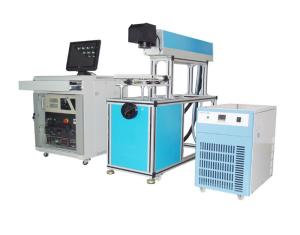

High Speed CO2 Laser Marking Machine for Shoes / Cloth

Product Model:

XGY-CO2 100W XGY-CO2 150W

Laser Wavelength:

1064nm

Output Power:1

100W 150W

Power Stability:

(8h)＜ ± 1% rms

Quality of Laser Beam:

M2＜5 (@25A)

Pulse Repetition Frequency:

≤20KHz

Focusing Lens:

Standard (F160)

Marking Range:

70×70mm,100×100mm(standard),150×150mm,200×200mm,300×300mm(optional)

Marking Speed:

250 characters per second (Times New Roman and the character height is 1mm)

Smallest Marking Character:

0.3mm

Minimum Marking Line Width:

50μm

Electricity Needs:

220V±22V / 50Hz / 30A

Power Consumption of the Whole Equipment:

<1.5KW

Cooling Method:

Cooling Method:water cooling

Size of Host System:

1290 mm×410 mm×1200mm

Size of Controlling System:

630 mm×630 mm×820mm

Size of Cooling System:

560 mm×430 mm×770mm

Weight of Host System:

40kg

Weight of Controlling System:

50kg

Weight of Cooling System:

30kg
