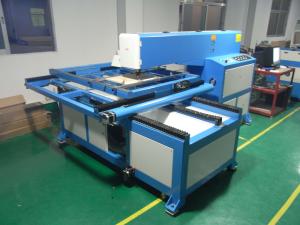

Single Head Laser Mould Cutting Machine for wood
Performance advantages of laser mould cutting machine:
1. It has compact structure and small area with the shell making of high-quality cold roll sheet; it only needs the external power of 220v with low consumption cost—the elements (laser tube and lens, etc.) only cost less than 700 Yuan per month (eight hours per day, 30 days per month).
2. It adopts flying light path structure with CO2 laser generator provided by the best manufacturer in China covering high stability. The laser reflection & focusing lens imported with original packing from America can greatly reduce the power attenuation in transmission process; the constant temperature water circulation system can prolong the life of laser tube as well as ensure the stability of laser power, so as to guarantee even joint-cutting of laser mould cutting machine.
Performance advantages of laser mould cutting machine:
1. It has compact structure and small area with the shell making of high-quality cold roll sheet; it only needs the external power of 220v with low consumption cost—the elements (laser tube and lens, etc.) only cost less than 700 Yuan per month (eight hours per day, 30 days per month).
2. It adopts flying light path structure with CO2 laser generator provided by the best manufacturer in China covering high stability. The laser reflection & focusing lens imported with original packing from America can greatly reduce the power attenuation in transmission process; the constant temperature water circulation system can prolong the life of laser tube as well as ensure the stability of laser power, so as to guarantee even joint-cutting of laser mould cutting machine.
Simple Show
Applications:
Applicable Material: Wooden Board and Engraving Board
Rubber Board Mould
Electric Circuit Board Mould
Remote Control Key-hole Mould
Electric Mould
Sponge Mould
Electric Mould
Computer Engraving Mould
Box Mould
Specifications:
Machine configuration
|
Product model
|
XGY-KM1612
|
|
Laser power:
|
400W
|
|
Cutting scope:
|
1600mm*1200mm
|
|
Max. Width of work piece:
|
1300mm
|
|
Max. Length of work piece:
|
infinity
|
|
Figure format
|
AL,DST,PLT,BMP,DXF
|
|
Supporting software
|
CORELDRAW,PHOTOSHOP,AUTCAD/CAM
|
|
Cutting depth
|
0-3000mm/min
|
|
Laser type
|
CO2 sealed of glass laser
|
|
Locating accuracy
|
≤0.05mm
|
|
Cooling system:
|
water cooling
|
|
Electric power:
|
220V/50Hz/10A
|
Competitive Advantage:
1.Fixed light path (the laser working head is fixed, the board moves)
2.Bi-directional imported precision ball screw driving (more precise than general one), with the error of precision electronic mould of 0.05mm.
3.Cut through 1-22mm one time, with vertical and even board slit and the speed of two minutes cutting one meter line. The cutting of an eight-split color box mould can be completed for half an hour.
4.Low electricity consumption and low cost, 220V single-phase electricity, 3 kw/h (3000w power machine)
5.High-strength stable machine tool without deformation for long term working.
6.The laser mould cutting machine can be used to cut and produce the rubber board mould of 5mm and 6mm as well as the wooden board mould of 18mm, 15mm and 20mm, covering any widths as 0.45, 0.71, 1.05 and 1.42.The joint-cutting is even with accordant upper and lower slits. Besides, it is instantly available with no need of waiting for the starting up. In addition, this cutting machine can make proof of box shape for the actual papers, and also make direct cutting proof design for the materials as electric membrane and adhesive sticker that need the die-cut of the mould. Moreover, it can be used to directly print the single graph in paper or large-size composition, to take place of a plotter cost tens of thousands of RMB.
